Solar Inverter Guide

Toosolar Technical Guide

Inverters, inverter/chargers and hybrid inverter/chargers explained simply, including sizing, batteries, solar input, installation and inverter-based battery backup systems.

At a glance

Start with the system function, not the headline wattage. The correct product must match the loads, battery voltage, required runtime, charging sources, solar design and installation method.

Need / application Recommended starting point
230 V appliances from a battery; charging is handled separately Pure sine wave inverter.
Battery charging from grid, generator or shore power, with automatic transfer Inverter/charger.
Integrated solar MPPT, battery charging and source-priority control Hybrid inverter/charger.
Emergency supply for selected home or business circuits Inverter/charger or hybrid unit, battery and essential-load distribution board.
Fridge, pump, compressor, tool or air conditioner Check starting power, starting duration and battery voltage drop - not only running watts.
Medium or high AC power 24 V or 48 V is often more practical than 12 V because DC current is lower.
Quick rule Check continuous W, VA, surge power and duration, battery voltage, charger and transfer ratings, PV limits, efficiency, idle consumption, monitoring and installation requirements.

What a solar inverter does

An inverter converts direct current (DC) from a battery into alternating current (AC) for normal appliances. In Europe, the output is normally 230 VAC at 50 Hz. The inverter does not create energy: the battery must supply the load power plus inverter and cable losses.

  • A stand-alone inverter supplies AC power but does not normally charge the battery.

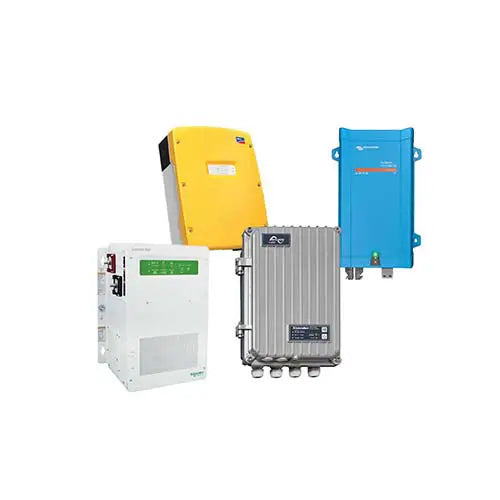

  • An inverter/charger also charges the battery from grid, generator or shore power and usually includes an automatic transfer switch.
  • A hybrid inverter/charger additionally includes one or more solar MPPT inputs and energy-management functions.
  • Pure sine wave output is the preferred choice for modern electronics, chargers, motors, compressors and audio equipment.
Terminology note “Solar inverter” is also used for grid-connected PV inverters that convert solar-array DC directly into grid-synchronised AC. These normally stop during a power cut unless they are part of an approved battery or backup architecture. This guide focuses mainly on battery-based products in the three Toosolar categories.

Which inverter type do you need?

Type What it includes Best suited to Main checks
Inverter Battery DC to AC. Vehicles, boats, cabins, remote loads and systems with separate chargers. Battery voltage, continuous and surge power, outlet or hard-wired output, idle consumption.
Inverter/charger Inverter + AC battery charger + automatic transfer. Shore power, generators, backup systems, cabins, marine and UPS-style supply. Charger current and profile, transfer rating, AC input range, generator compatibility.
Hybrid inverter/charger Inverter/charger + solar MPPT + source management. All-in-one off-grid systems, solar priority, backup and approved grid-interactive systems. PV Voc and MPPT range, PV current/power, operating modes, grid approvals, BMS compatibility.
Hybrid does not always mean the same thing Some hybrid products simply combine solar, battery, grid and generator functions. Others also support self-consumption, export control or batteryless operation. Confirm the exact model functions and approvals before selection.

Pure sine wave and key specifications

Toosolar focuses on pure sine wave products because they provide the widest appliance compatibility. Waveform quality is important, but correct sizing is still essential: a pure sine inverter can still trip if the load or starting surge is too high.

Specification Why it matters
Battery voltage Must match the system, normally 12 V, 24 V or 48 V.
Continuous power in W Real power available for sustained loads at the stated temperature.
Rated power in VA Apparent power. Poor-power-factor loads may reach the VA limit before the W limit.
Peak / surge power and duration Determines whether motors, compressors, pumps, tools and transformers can start.
Efficiency and idle consumption Affects battery runtime, especially when the inverter stays on with small or intermittent loads.
Low-voltage alarm / shutdown Protects the equipment, but undersized cables can cause premature shutdown through voltage drop.
AC charger and transfer ratings For inverter/chargers: must suit the battery, AC source and pass-through load.
PV Voc, MPPT range, current and power For hybrid models: the complete solar array must remain inside every electrical limit.
Monitoring, IP rating and temperature Affects configuration, BMS communication, installation location, cooling and derating.
W and VA are not interchangeable Watts describe real power; volt-amperes describe apparent power. Check both ratings and the load power factor.

Sizing: loads, surge and battery

List the appliances that may run at the same time. Use the electrical input shown on the label or measured at the socket, then check the largest realistic starting event.

Load type Typical behaviour Sizing direction
Heaters, kettles, toasters Little starting surge but high continuous power and energy use. Size from the real input watts and check battery runtime.
LEDs and electronic power supplies Low running watts but possible short current peaks or poor power factor. Allow margin, especially when many units start together.
Fridges, pumps, tools and compressors Starting demand can be several times the running power. Check the inverter overload curve and battery voltage during start.
Microwaves and air conditioners Electrical input is higher than the useful output; compressor starts may be demanding. Use manufacturer input and start data, not advertised cooking or cooling output.
Inverter power versus battery runtime The inverter rating tells you what can run. Battery usable watt-hours tell you for how long. A larger inverter does not create more stored energy.

Approximate DC current at 90% inverter efficiency:

AC load 12 V battery 24 V battery 48 V battery
500 W about 46 A about 23 A about 12 A
1,000 W about 93 A about 46 A about 23 A
2,000 W about 185 A about 93 A about 46 A

Simple runtime estimate: usable AC energy is approximately battery voltage × amp-hours × usable fraction × inverter efficiency. Runtime is approximately usable AC watt-hours divided by average AC load.

  • Check battery continuous and peak discharge-current limits, not only amp-hours.
  • For lithium batteries, BMS current and communication limits may determine the permitted inverter size.
  • For lead-acid batteries, high current reduces effective capacity and increases voltage sag.

Solar charging and AC input

The inverter category determines how the battery is charged and how the different energy sources are managed.

Function Inverter Inverter/charger Hybrid inverter/charger
Supplies 230 V AC from battery Yes Yes Yes
Charges battery from grid / generator / shore No Yes Yes
Automatic AC transfer No Normally yes Normally yes
Built-in solar MPPT No Normally no Yes
Solar / battery / grid priorities External equipment Model-dependent Integrated, model-dependent
  • For a stand-alone inverter, solar panels charge the battery through a separate solar charge controller.
  • For a hybrid unit, calculate cold-weather PV open-circuit voltage and check the MPPT range, current and power limits.
  • AC input-current limiting can prevent a small generator or shore connection from being overloaded.
  • Battery charging settings must match the battery chemistry, capacity, temperature requirements and BMS limits.
Do not connect panels to ordinary battery terminals PV modules connect only to a dedicated PV/MPPT input or to a separate solar charge controller.

Inverter-based battery backup systems

A battery backup system keeps selected circuits operating when the grid fails. During normal supply, the inverter/charger passes AC to the loads and keeps the battery charged. During an outage, it disconnects from the grid and supplies the essential-load circuits from the battery. When grid power returns, it transfers the loads back and recharges the battery.

Diagram showing an inverter-based battery backup system during normal grid supply and during a power outage

Normal operation and outage operation in a typical essential-load battery backup system.

Main components

Component Purpose
Inverter/charger or hybrid inverter/charger Provides AC output, battery charging and automatic transfer.
Battery or battery bank Stores energy for use during the outage. Lithium batteries normally include a BMS.
Essential-load distribution board Separates the circuits that must remain powered from non-essential or oversized loads.
DC protection and cabling Battery fuse or breaker, isolator, correctly sized cables, terminals and busbars.
AC protection and earthing Input/output breakers, RCD/RCBO protection, protective earth and correct neutral arrangement.
Solar charging - optional A separate MPPT or integrated hybrid PV input can recharge the battery and extend autonomy.
Monitoring and control Shows battery state, loads, alarms and source status; may provide remote access.
Installation materials Enclosure, cable routing, glands, ventilation and manufacturer-specified accessories.
Backup is normally designed around essential loads Heating, cooking, refrigeration, large pumps and air conditioners can make a whole-building backup system very expensive. Start with the circuits that must continue, calculate their real power and energy use, then size the inverter and battery.
Browse Toosolar inverter-based backup kits Toosolar backup kits combine the main system components in compatible packages. Final cable sizes, protection, installation and commissioning still depend on the selected kit and site. Open inverter-based backup kits.

Installation essentials

Battery and DC side

  • Use the cable cross-section, maximum length, fuse rating and terminal hardware specified by the inverter manufacturer.
  • Install the battery fuse or breaker close to the battery positive terminal and use protection with suitable DC interrupt capacity.
  • Keep positive and negative cables short, routed together and correctly supported; poor connections can heat and create voltage drop.
  • Use a dedicated service battery or designed battery bank, not an ordinary starter battery unless the complete system permits it.
  • Provide isolation, ventilation and the required mounting orientation. Do not expose indoor-rated products to moisture or conductive dust.

AC side

  • Check AC input, pass-through and output ratings, conductor sizes and breaker requirements.
  • Follow the manufacturer design for protective earth and neutral-to-earth bonding in inverter and pass-through modes.
  • Use the required MCBs and RCDs/RCBOs and test protection in every supply mode.
  • Never backfeed an inverter through a wall socket or join unrelated inverter outputs together.
  • Grid export and fixed backup installations may require approved equipment, local permission and professional commissioning.
Qualified installation required High-power batteries and fixed AC systems can present fire, arc and electric-shock hazards. Final design and installation must follow the current manuals and applicable regulations.

How to choose the right inverter

  1. List the AC loads, simultaneous use and the largest starting load.
  2. Calculate daily energy or required backup runtime in watt-hours.
  3. Choose the battery voltage and verify battery and BMS discharge capability.
  4. Select the category: inverter, inverter/charger or hybrid inverter/charger.
  5. Check continuous W, VA, surge power and surge duration at the expected temperature.
  6. Check charger and transfer ratings, generator compatibility and battery charging profile.
  7. For hybrid models, design the PV strings from Voc, MPPT range, current and power limits.
  8. Plan cables, fuses, isolation, earthing, ventilation, monitoring and future expansion before ordering.
Useful information for product selection Provide the appliance list, highest starting load, battery voltage and model, required runtime, solar-array details, grid or generator connection, cable distances, installation environment and expansion plans.

Common mistakes to avoid

  • Choosing from the appliance running watts and ignoring starting power.
  • Confusing VA with W or assuming the complete VA rating is available as real watts.
  • Using a high-power inverter on 12 V without calculating DC current and voltage drop.
  • Sizing the battery only in amp-hours and ignoring discharge-current or BMS limits.
  • Using undersized, long or poorly crimped battery cables.
  • Installing the battery fuse too far from the battery or using unsuitable DC protection.
  • Assuming every inverter/charger includes a solar controller.
  • Exceeding hybrid PV voltage, MPPT current or power limits.
  • Using default charger settings that do not match the battery.
  • Expecting a small generator or shore connection to power the loads and maximum charging simultaneously.
  • Ignoring earthing, neutral bonding, RCD operation and AC transfer requirements.
  • Assuming every hybrid model can export to the grid or work without a battery.

Frequently asked questions

Do I need a pure sine wave inverter?

For most modern systems, yes. It provides the widest compatibility with electronics, chargers, motors, compressors and audio equipment.

How large should the inverter be?

Add the realistic simultaneous loads, allow a sensible margin and verify that the surge rating and duration can start the largest motor or compressor.

What is the difference between an inverter/charger and a hybrid inverter/charger?

An inverter/charger adds AC charging and automatic transfer. A hybrid model also integrates solar MPPT input and source-priority controls.

Can I run a 2,000 W inverter from a 12 V battery?

It is possible, but full-load DC current can exceed 180 A. The battery, BMS, cables, terminals, fuse and voltage drop must all be designed for it; 24 V or 48 V is often easier.

How long will the battery run the inverter?

Runtime depends on usable battery watt-hours, inverter efficiency and the average load. Battery age, temperature and discharge-current limits also matter.

Can solar panels connect directly to an inverter?

Only to a dedicated PV input on a hybrid inverter. A normal inverter battery input requires a battery and is not a direct solar input.

Can one battery backup system power the whole building?

It can be designed to do so, but essential-load backup is normally more economical. High-power heating, cooking and cooling loads greatly increase the inverter and battery size.

Can two inverters be connected in parallel?

Only when the manufacturer explicitly supports parallel operation for those exact models and the approved wiring, communication and configuration are used.

Can a hybrid inverter work without batteries?

Some models and modes can; many cannot, and backup operation normally needs storage. Check the current manual for the exact product.

Does an inverter need earthing and an RCD?

Fixed systems require a correctly designed protective-earth, neutral-bonding and fault-protection arrangement that works in every supply mode.

More questions? Visit the Toosolar Technical FAQ or contact Toosolar for product-specific support.

Why quality matters

An inverter is the electrical centre of a battery-based AC system. It repeatedly handles high DC current, heat, switching stress, motor starts, battery charging and source transfer. Product quality affects waveform, overload behaviour, cooling, protection, charger accuracy, firmware, monitoring, documentation and long-term serviceability.

  • Clear continuous and time-limited overload data makes sizing more reliable.
  • Robust terminals, thermal design and protection reduce overheating and premature failure.
  • Accurate configurable charging protects expensive lead-acid and lithium batteries.
  • Reliable transfer, generator controls and monitoring matter in backup and professional systems.
  • Manufacturer manuals, firmware support, spare parts and warranty procedures are part of the product value.
Toosolar focus Toosolar combines products from established off-grid and energy-system manufacturers - including Morningstar, Steca, Victron, Studer, OutBack and SMA - with practical product-selection support. The objective is to help customers understand what they need before ordering and to choose equipment with dependable documentation and service support.
Need help selecting an inverter? Tell us the appliance list and starting loads, battery voltage and model, required runtime, charging sources, solar-array details, grid or generator connection, cable distances, installation environment and whether monitoring, parallel operation or three-phase output is required. We can help you choose a compatible inverter and avoid common sizing and installation mistakes.
